Clearvu 358 Security Galvanized Fence Panels / Mesh Panels "V" Formation Horizontal

3m High 76,2mm x 12,7mm "v" Formation Horizontal Clearvu 358 Security Fence

Product Description

We are specialized company operating in the design, manufacture and installation of high security fencing systems for civil, industrial and military projects. Our company offers the most effective and affordable safety fencing solutions. Our product range includes 358 mesh fencing, 3510 mesh fence, anti climb fence, clear view fencing, twin wire fence, paladin fence, top roll mesh panels, fence post and other accessories.

358 mesh fence is featured by the design that combines the high security and perfect aesthetic effect. Panel sections are welded wire mesh with small rectangular openings 76.2 mm × 12.7 mm made from 4 mm galfan steel wires, and welded well at each intersection, then PVC powder coating with green RAL 6005 or black RAL 9005 color, which provides a protective anti-corrosion property for 10-15 years.

The high security 358 welded mesh fencing is extremely difficult to penetrate and difficult to attack by using conventional tools. Because of the anti-climbing and anti-cutting features, 358 welded mesh security fencing is also called anti climb fence. It is usually used for fencing where require high levels of security, such as airport, prison and military establishments, so 358 mesh is also called prison fencing.

This kind of welded panel width is 2515 mm and height from 2007 mm to 3302 mm. Several panels can be installed on the top of each other, thus the 358 mesh fencing can achieve a total height of 6300 mm.

Fence Panels

• 3mm horizontal x 4mm vertical diameter high tensile wires
• Aperture size - 76,2mm x 12,7mm
• Panels reinforced with 4 x 50mm deep "V" formation horizontal recessed bands and2 x 75mm 70 degree flanges along sides.

OR

• 4mm horizontal x 4mm vertical diameter high tensile wires
• Aperture size - 76,2mm x 12,7mm
• panel width 2515mm and height from 2007mm to 3302mm

Posts

• Tapper posts with UV stabilized polymer end cap
• Tapper: 85mm - 45mm / 150mm - 75mm

Specification:

Table-2: 358 Mesh Fence Specifications

PVC Coated 358 Mesh Fence

2 x 50mm Deep "V" Curved PVC coated 358 Mesh Fence

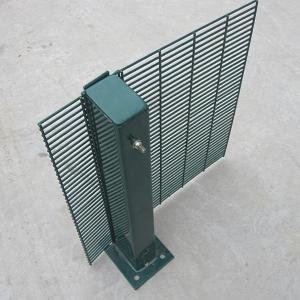

Green Powder coated 358 Mesh Fence connect with Rectangule Post

Feet Base for install of PVC coated 358 clearvue Mesh Fence

Hebei Qijie Wire Mesh MFG Co., Ltd. is located in Anping county, Northern China, which is famous as "the hometown of wire mesh" in the country.

The company was founded in 1999 with a registered capital of 500,000 US dollars, covering 40,000 square meters, has 3 plant areas, 22 stainless steel woven mesh machines, 28 welded wire mesh machines, 11 double twisted hexagonal gabion baskets machines, 8 cutting and flattening mesh machines, and 2 automatic PVC coating lines. Qijie does sales both home and abroad with annual amount of more than $ 20 million, the main products are stainless steel fly screen mesh, fence panels, gabion baskets, woven screening mesh, welded wire mesh, expanded metal mesh, perforated metal and various wire products.

Our main aim is to ensure customer satisfaction by providing superior quality products at reasonable prices. We use meticulous quality control procedures and analysis in order to ensure our products meet the international standards. A combination of competitive prices, on-time delivery and quality guarantee will make us our customer's best choice.
