| Categories | Front End Wheel Loader |
|---|---|
| Brand Name: | WEA |
| Model Number: | W138 |
| Place of Origin: | CHINA |
| MOQ: | 1unit |
| Price: | usd24000/unit-usd29000/unit |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 500 units per year |
| Delivery Time: | 35 working days |

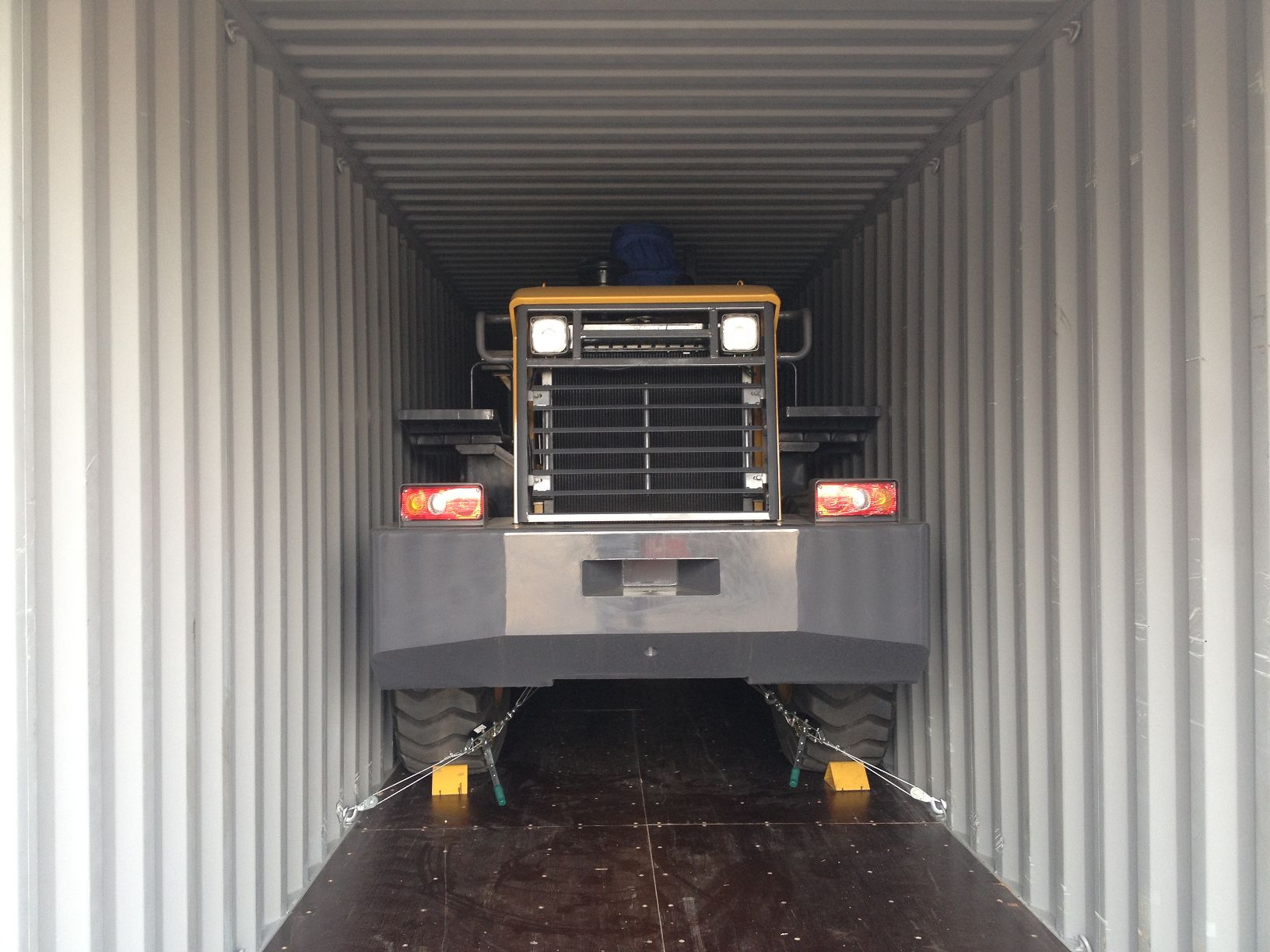

| Packaging Details: | in container |
| Condition: | New |
| Engine: | Cummins/Weichai |
| Engine Model: | 6BT5.9/WP6G125E22 |
| Type: | Direct injection, turbocharged, water cooling |
| Rated Power: | 97/92kW |
| Rated Speed: | 2200rpm |
| Operating weight: | 10200kg |
| Rated Bucket Capacity: | 1.8m3/2.2m3 |
| Company Info. |
| World Equipment (Changzhou) Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
MAIN FEATURES
1. Wheel Loader is a kind of earthwork construction machinery widely usedd in highway, railway, construction, port, mine and other construction projects.
2. It is mainly used for shoveling bulk materials such as soil, sand, lime, coal, etc. It can also be used for slight shoveling and excavation of ores, hard soil, etc.
3. Different auxiliary working devices can also be used for bulldozing, lifting and loading and unloading of other materials such as wood.
ADVANTAGES
1. Fast operation and high efficiency
2. Good maneuverability
3. Simple and portable operation
| Operating weight | 10200kg | System pressure | 16MPa |
| Rated Bucket Capacity | 1.8m3/2.2m3 | Flow rate at engine rated speed | 220L/min |
| Max. breakout force | 96kN | Lifting cylinder | 2-125x697mm |
| Dumping clearance | 2934mm | Tilting cylinder | 1-150x434mm |
| Dumping reach | 1043mm | Lifting time | 5.2s |
| Tipping load full turn | 5880kg | Lowering time | 3.0s |
| Max. drawing force | 96kN | Dumping time | 1.1s |
| Gear ratio of main drive | 4.222 | Traveling speed | I II III IV |
| Gear ratio of hub reduction | 4.8 | Forward | 7.8 14.7 23.5 41.2 |
| Max. gradient ability | 30° | Reverse | 10.8 31.6 |
| 31.6Streering angle | ±38° | Fuel tank | 130L |
| Min. steering radius | 4885mm | T/C and T/M | 38L |
| System pressure | 16MPa | Hydraulic tank | 120L |
| Flow rate at engine rated speed | 100ml/min | F/R axles | 15L/15L |
| No, of cylinders-BorexStroke | 2-70x357mm | Tyre size | 17.5-25-12PR |
