CE 2 Way Diverter Valve One Way Out Pellets Transportation

Two Ways In, One Way Out DN200 Rotary Diverter Valve

Product Description

Features:

It can be applied to the switching transportation of powder and pellets;

The special structure can meet the requirements of customers for switching with materials;

The overall structure design is sturdy and compact, exquisite and beautiful;

The design of multiple angles can satisfy the switching needs of various angle pipelines;

The conveying channel is smooth and clean to ensure the smooth flow of materials;

The polishing accuracy can reach 400#, which is suitable for conveying food-grade and pharmaceutical-grade materials;

A variety of body materials can be selected according to the actual needs of users: stainless steel (SS304, SS304L, SS316, 316L), carbon steel, etc.;

There are a variety of drive modes to choose from: manual, pneumatic;

The perfect pneumatic control system can improve the level of automation and ensure high-efficiency operation reliability.

THFX series plug reversing valve (also known as double-way valve, two way valve) is mainly used in pneumatic conveying system to change the conveying direction of powdery materials or fine granular materials in the pipeline, and achieve the switching and pressure feeding of one kind of material under the state of conveying materials to different locations. During the implementation of project, according to the process design requirements, it can be flexibly combined and used in the pneumatic pressure conveying system to send a material to multiple different locations. The installation method fully considers the current status of the industry and the installation is easy to install.

The pneumatic conveying method can ensure that there is no residual material in the pipeline and is more and more popular with users. THFX cock valve can be widely used in flour mills, food plants, chemical plants, feed plants, rice plants, etc. for flour, bran, broken rice, starch, grains, feed, sugar, chemical products, plastics and other fine powder in pneumatic conveying system.

Features

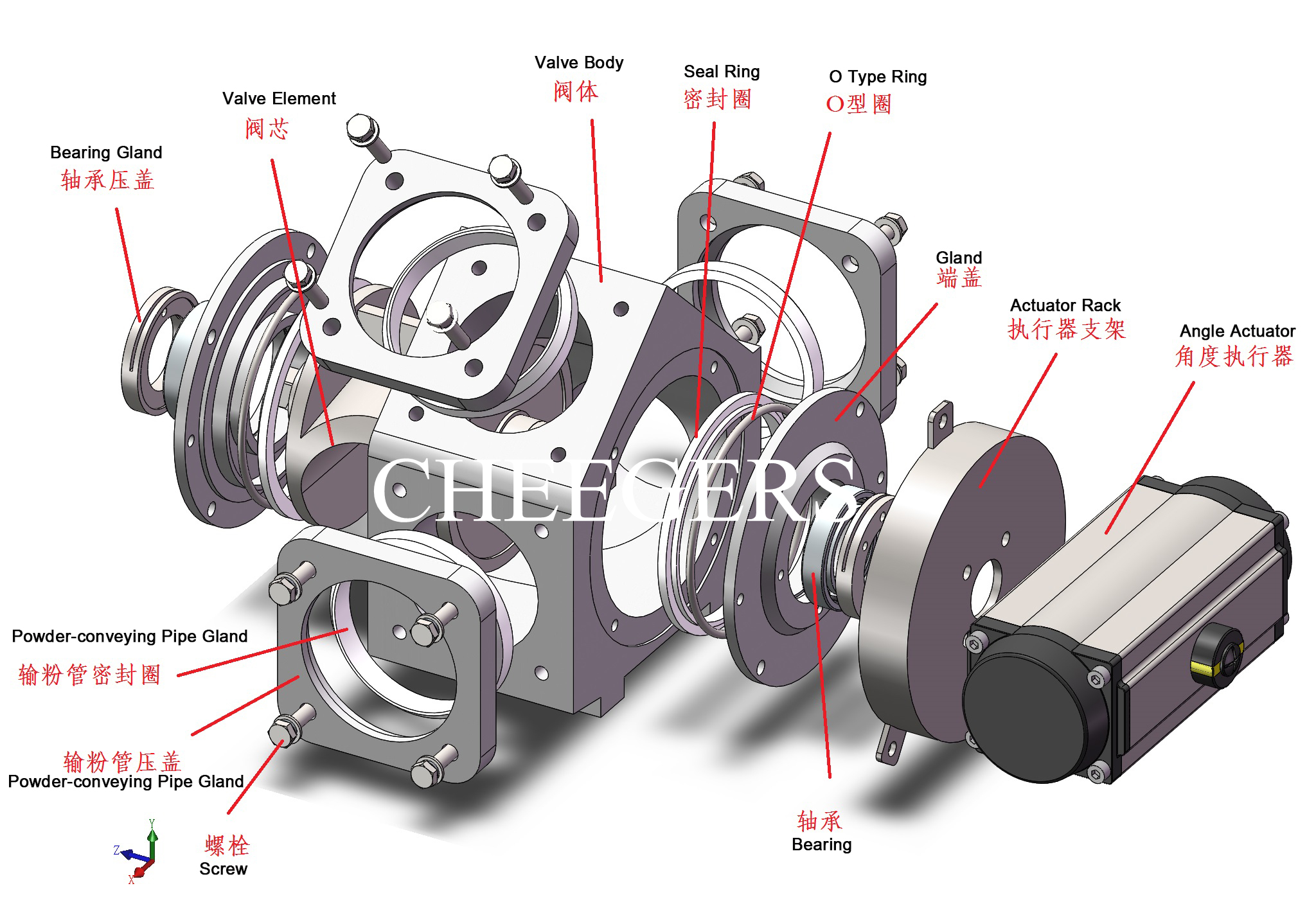

Explosion Drawing

Dimension Display

Factory Overview

1. Cheegers accumulated rich of experience in dealing with different handling materials from different indurstries through the 60 years production experience. We alway can solve our customer's onsite headache with our expertise on the valves. We are professional and experienced in this field.
2. We are strict with the procedure for selecting the correct valves for customers. Incorrect valve can cause lots of problems in future.
3. Cheegers' manufacturing craft can meet 0.08mm small clearance. Our valves have good airlock perfomance.
4. We guarante the standard and thick steel material we are using.
5. Cheegers dedicated to establishing long term cooperation with our customers, we offer one year warranty and forever online technical support.

Onsite Application

With integrated cooperation, our products exported to over 30 countries and areas, like Germany, Italy, Canada, Southeast Asia, etc. we are striving to broaden the selling network and add service agency.

Our products and sales services both gained highly speak of from customers. Believe we can do better and better.

Handling Material

With small size, elegant appearance, compact structure, convenient operation etc, it is widely used in grain, food, feed, grease, chemicals, electric power, port and wharf, storage and transportation industries etc.

For different sizes, shapes handling material with different charateristics, we have professional plans and solutions to deal with them in pneumatic conveying system.

Certificate

Cheegers has got the CE for rotary valve and diverter valve as below:

We also have other patents for rotary valve and diverter valve domestically.

Like high airtight rotary airlock valve patent, apprearance patent for airlock valves, etc

Chengdu Cheegers Machinery Limited Company is committed to researching and manufacturing rotary valve, diverter valve, slide gate valve and magnet separator used in bulk solids conveying over half a century, having accumulated rich experience in design and producing. Through long-term communication and cooperation with overseas producers and customers, combined with rich market experience at home and abroad, Cheegers offers solutions to solve and meet various bulk solids conveying demands for customers at home and abroad. “CHEEGERS” brand products are exported to over 30 countries and areas, like Germany, Italy, Canada, Southeast Asia, etc. Cheegers keeps broadening selling network and setting up more service agencies. With strict quality control and completed after-sales service, Cheegers gains consistent approval from customers.
