2.0mm Fiber Optical Patch Cord , Lc To Sc Fiber Patch Cable PVC/LSZH/OFNR

LC to SC UPC Duplex OM3 Multimode PVC/LSZH/OFNR 2.0mm Fiber Optic Patch Cable

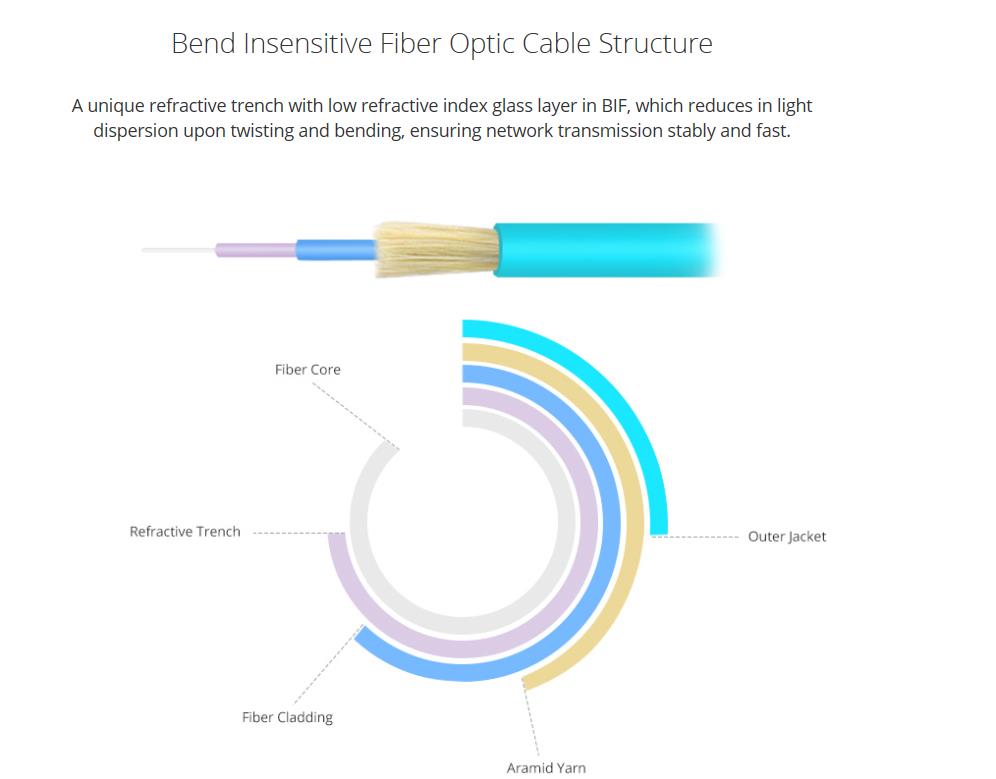

The 50/125μm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.

This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.


APPLICATION

1. Telecommunications

2. CATV, LAN, MAN, WAN, Test &Measurement

3. Military industry

4. Medical


FEATURES

1. Low insertion loss and back reflection loss

2. Ferrule end surface pre-domed

3. Excellent mechanical endurance

4. Good in repeatability

5. Good in exchange

6. Green Production, CE, RoHS Standard


Parameters

ModeSingle modeMultimode
PolishUPCAPCPC
Insertion Loss≤0.30dB≤0.20dB≤0.20dB
Return Loss≥50dB≥60dB≥30dB
Test Wavelength1310/1550nm850/1310nm
Durability(500 Matings)≤0.2dB
Operating Temperature-40~+60
Storage Temperature-45~+85
Fire ResistantIEC 60794-2-30
Standards-CompliantROHS,IEC and GR-326

Fiber typeSingle mode:9/125-G652D9/125-G6559/125-G657A,G657A29/125-G657B3
Multimode:50/125-OM262.5/125-OM150/125-OM350/125-OM450/125-OM5
Fiber BrandYOFC, Corning, Sumitomo, Fujikura
ConnectorSC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord typeSimplex ,Duplex
Cable diameter0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
Cable jacketPVC, OFNR, LSZH, OFNP
length(M)0.5m,1m,2m,5m,10m,25m,50m,100m…Customized
