Categories | Air Conditioner Fan Motor |
---|---|
Brand Name: | trusTec |
Model Number: | YDK/YSK139/140 |
Certification: | UL Approval E529388,CE approval |
Place of Origin: | China |
MOQ: | 200pcs |
Price: | Please contact for a quote |
Payment Terms: | T/T, L/C |
Supply Ability: | 100,000 pcs per month |
Delivery Time: | 20 work days after order confirmation. |
Packaging Details: | standard export carton packing, foam board inside for protection. |

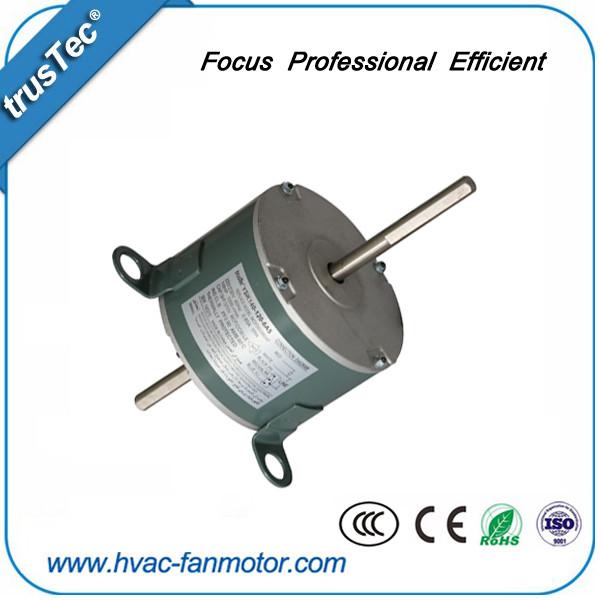

Product Name: | window air conditioner fan motor |
Voltage: | 110-120V / 220-240V 1PH |
Frequency: | 50/60Hz |
Power: | 1/8-1HP |
Speed: | 600-1800RPM 4/6P |
Rotation: | CW/CCW/Reversible |
ODM Solutions: | ODM Solutions: Customized AC and EC motors |
Company Info. |
Changzhou Trustec Company Limited |
Verified Supplier |
View Contact Details |
Product List |
Model series | YDK/YSK140 |
Voltage | 110-120V / 220-240V 1PH |
Frequency | 50Hz / 60Hz / 50/60Hz |
Power | 1/8-1HP 100W-750W |
Speed | 600-1800RPM 4/6P |
Speeds | single/multi speeds |
Rotation | CW/CCW/Reversible |
Insulation | B/F |
Proof | IP20-IP54 |
Protection | thermally protected |
Enclosure | totally enclosed/open ventilated |
Model | Voltage | Frequency | Power | Power | Speed |
YSK140/30-4-150-1 | 230V | 50Hz | 150W | 1/5HP | 1200RPM/3 SPD |
YSK140/35-4-185-1 | 230V | 50Hz | 185W | 1/4HP | 1300RPM/3 SPD |
YSK140-245-4 | 208-230V | 60Hz | 245W | 1/3HP | 1625RPM/3 SPD |
YSK140-375-4 | 208-230V | 60Hz | 375W | 1/2HP | 1625RPM/3 SPD |
YSK140-550-6 | 208-230V | 60Hz | 550W | 3/4HP | 1075RPM |
Listed are representative motors, technical parameter and mounting dimension can be customized according to customer's requirement.
Use NSK low noise high quality ball bearing;
Nickel plating for shaft, electrophoretic coating for enclosure;
Reasonable structure, high efficiency, low temperature rise, low
noise, small vibration.
![]() |
