| Categories | HDMI TFT LCD Display |
|---|---|
| Brand Name: | ESEN |
| Model Number: | T123WF01-CT |
| Certification: | ISO9001/ISO14001 |
| Place of Origin: | Shenzhen China |
| MOQ: | 500 PCS |
| Price: | US$ 21.5（can be negotiated） |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 500K/mth |
| Delivery Time: | 7~14 working days |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| LCD Size: | 12.3inch |
| LCM Dimension: | 307（W）* 125.5（H） * 7.7(T)mm |
| LCD Active Area: | 292.03* 109.51mm |
| Number OfDots: | 1920* RGB * 720pixel |
| LCD Type: | a-Si TFT |
| Viewing Direction: | ALL |
| Driver IC: | -- |
| Interface Type: | LVDS |
| Operating Temperature: | -30℃~ 80℃ |
| Storage Temperature: | -30℃~ 85℃ |
| Backlight Type: | 48 LEDs |
| Custom Service: | FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board |
| Company Info. |
| ESEN HK LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
Ultrawide Form Factor & High Resolution
Aspect Ratio: 8:3 (1920×720) provides an elongated display ideal for dashboard layouts and data-dense interfaces.
Pixel Density: ~167 PPI with RGB vertical stripe arrangement ensures sharp text/graphics for critical information.
This 12.3-inch TFT LCD display control module showcases refinement, seamlessly integrating an LCD screen, an optional capacitive touch screen, and an HDMI driver board. Its advantage lies in the ability to perfectly render HDMI digital signals from a PC onto its stunning 1920-720 LCD canvas. It is designed as a custom single-channel HDMI display driver board with built-in LED driver function, providing a visual effect with a maximum resolution of 1920x720/60HZ.
Define outstanding functionality
Support for multi-functional LVDS screen interface signal output. ·
Multi-language OSD options to meet different preferences. Seamless
HDMI signal input support. Enhanced audio output function. ·
Convenient ODS menu button support. It is powered by a USB 5V
output.
Product highlights
The T123WF01-1920720A-CT TFT LCD module has a diagonal length of
12.3 inches and features a vivid 1920xRGBx720 full-color
strip-shaped TFT module. Supported by the LVDS interface, the
T123WF01-1920720A-CT model has dimensions of 322.63142.1116.5 mm
and an effective area size of 292.63×110.11 mm. This LCD display
module has a surface brightness of up to 850 CD /m ² (nits) and can
operate normally within a temperature range of -30℃ to +85℃. Rich
customization options are available, allowing you to integrate
resistive or capacitive touch screens into this 12.3-inch TFT LCD
masterpiece.
| Keywords: | 12.3″ Inch Bar Type TFT |
| Resolution: | 1920×720 Dots |
| Interface: | HDMI |
| Surface Luminance: | 850 Cd/m2 (nits) |
| Support: | Raspberry Pi, Windows, Jetson Nano |
| Touch Interface: | IIC(I2C) |
| Touch Screen: | 10-point Capacitive Touch Screen |
| Cover Glass Dimension: | Optional For Customization |
| LED Lifetime: | 40,000 Hours |
| Viewing Direction: | All Viewing Angles |
| Operating Temp.: | –30℃ To +85℃ |
| Compliance: | REACH & RoHS Compliant & Halogen Free |
| Certification: | ISO9001:2015 / ISO14000:2015 |

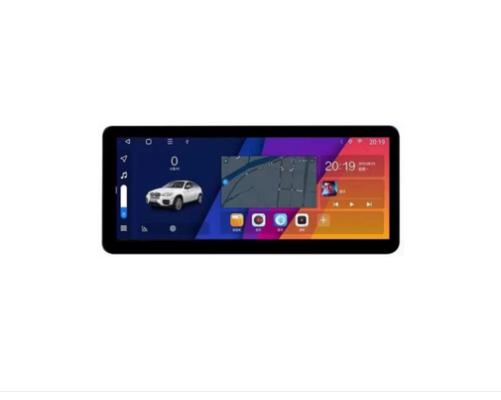

12.3-inch automotive-grade bar LCD display with CTP and HDMI interfaces, supporting Raspberry Pi, Windows and Jetson Nano graphics
FAQ
Q: When can i get the quotation?
A: We usually quote within 12 hours after we got your inquiry.
If it is very urgent, please call us or contact us via email, Skype
or WhatsApp.
Q: What is your warranty?
A: We provide one year warranty.
Q: May i buy samples from you?
A: Yes! You are welcome to place sample order to test our height quality and service.
Q: How to place bulk order?
A: 1) Tell us model number, quantity, color and other special
requirements.
2) Proforma Invoice will be made and sent to you for approval
3) Production will be arranged once get your payment or deposit.
4) Goods will be delivered as stated on the Proforma Invoice.
Q: How will you deliver my goods to me?
A: We provide as many shipping options as possible, such as DHL,
UPS, FEDEX, TNT AND EMS to enable our customers get their goods
rapidly at door. We also ship by economick method such as air cargo
and sea cargo, direct line, air mail according to customers'
request.
Q: What about the quality of your product?
A: We provide unrivaled quality: very rigorous testing process for
incoming quality control, input process quality control, and
final quanltiy control for every piece. We follow QC test
procedure, and do 100% FQC to ensure your satisfication.
Q: Can you provide OEM service?
A: Yes! We can provide professional OEM service.
Q: Do you have any after-sales service?
A: Yes! Our productt has professional after-sales service dept.
Follow up R.M.A. Items service and upload product fireware and app for you download.If you have any technical questions with the goods, please feel
freely to contact our technical support dept, or our sales
directly."
|
