Integrated Structure Sprag Backstop Cam Clutch With Oil Storage

CKZ-D Sprag Backstop Cam Clutch With Oil Storage 115 - 314.5 mm

1, BTC type (ratcheting) by two clutch discs toothed plane when the venting, the internal tooth moving axially connected, by a return spring automatically isolated when the pressure relief.
2, BTC ratcheting type pneumatic clutch connected for transmitting power ratcheting teeth, thus slip-free, fine power transmission. But the amount of small form factor convey high torque in a small space can use the optional wide torque range
3, connected to the tooth and the tooth, small size, but the transmitted torque other times the same volume.
4,1 predetermined value than a slip-free transmission, consumption without loss of torque.
5, are connected to or separated in an instant, fast and sensitive operation.
6, integrated structure easy to install, do not worry about the axis of the tooth contract.
7, to be connected to a low-speed, but high-speed operation can be transferred.
8, dry, wet, may be used.

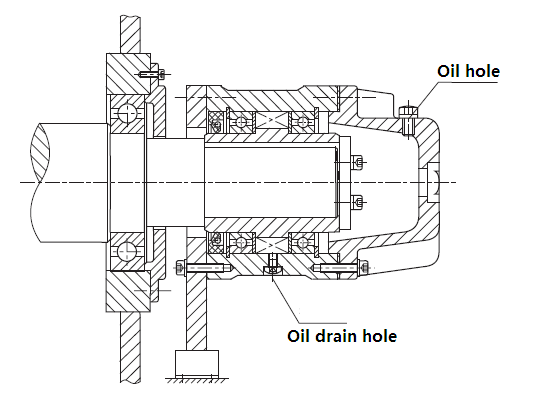

Mounting Example

Xianyang CHAOYUE Clutch Co., Ltd. established in 1999. is a 22 years' professional manufacturer engaged in the research, development, production, sale and service of one way overrunning clutches, backstops, locking assemblies, couplings, electromagnetic clutch and brake, clamping elements etcetera. We dedicated to strict quality control and thoughtful customer service, our experiences staff members always available to discuss your requirements and ensure full customer satisfaction.

We have certificated by ISO9001:2015, TüV. By our high quality products, we aim to provide a high-end solution for our partner. Whether selecting a curent product from our catalogue or seeking engineering assistance for your application, please feel free to talk to us about your requirements.
